Designed for in-vehicle and in-building use, the Icom IC-SAT100M Fixed Mount Satellite PTT Radio operates on the Iridium satellite network to provide real-time push-to-talk communications anywhere on the planet. Unlike handheld satellite PTT radios, IC-SAT100M users do not need to stay outside for a clear view of the sky for a stable push-to-talk connection. The IC-SAT100M features a durable housing, large front-ported speaker, powerful 1500 mW audio output for clear communication in noisy environments, an RF unit antenna and built-in Bluetooth capability to support hands-free operation (optional accessory required).
Talkgroups and devices are easily managed via the free Iridium PTT Command Center web application. and with a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with an IP phone, WLAN, LTE, IDAS digital*, analog transceivers and other communication systems. Please contact us to learn more.
When you choose satellite PTT from Roadpost, along with industry-leading products you get a nimble partner with over 30 years of telecom expertise that is fully committed to your organization’s success.
Note: Icom PTT devices require a monthly PTT service plan to transmit over the Iridium satellite network. PTT service plans feature a flat monthly rate that enables unlimited push-to-talk between users in the same talkgroup. Inquire for details and PTT service pricing.
Highlights
- PTT coverage everywhere on earth via the Iridium satellite network
- PTT coverage everywhere on earth via the Iridium satellite network
- Supports one-to-many push-to-talk voice and short talkgroup messaging communication
- Easily provides coverage from vehicle to in-building use
- Operating temperature range: -22°F to 140°F (-30°C to 60°C)
- RF unit antenna with easy wiring between the antenna unit and main unit using a LAN cable
- Loud, clear audio
- Emergency button
- Interoperable with conventional radios using VE-PG4
- One (1) year manufacturer’s warranty
* Type-D multi-site trunking and conventional systems.
Features and Tech Specs of the IC-SAT100M
Device Features
- Supports Iridium PTT communication and short talkgroup messaging
- Engineered for in-vehicle, in-building applications
- Emergency button; transmits an emergency call to an assigned talkgroup
- Low visibility installation for in-vehicle application using optional AH-40 antenna
- 1500 mW audio provides loud and clear communication, even in noisy environments
- MIL-STD 810G
- IP67 (antenna with RF unit), IP55 (mic), IP54 (main unit); dust- and water-resistant
- Integrated GPS receiver shows received signal position information on the display
- Supplied multi-functional speaker-microphone
- Interoperability with other devices, including conventional radios using VE-PG4
- LAN cable (CAT5e) accepts up to 100 m (328 ft) cable connection (from the main unit to the antenna with RF unit) without any sensitivity loss, and also the thin cable allows easy wiring work
- Last Call Play function, playback up to 6 latest calls
- AES 256-bit encryption
- Antenna connector: SMA (for external antenna)
- Multiple language display (English, Spanish, French, Japanese, and Chinese)
Device Features
- Main unit dimensions: (L x W x D): 4.9" x 1.1" x 6.2" (125 mm x 29 mm x 156.5 mm)
- Antenna unit dimensions: (L x W x D): 3" x 7.9" x 3" (76.8 mm x 200 mm x 76.8 mm)
- Microphone unit dimensions: (L x W x D): 2.3" x 5.3" x 1.2" (59.5mm x 134.6 mm x 30.1 mm)
- Weight: 1.1 oz (500 g); Main unit: 2.1 oz (950 g); Microphone: 0.55 oz (250 g)
- MIL-STD 810G (also meets MIL-STD 810-C, -D, -E, -F)
- Operating temperature: -22°F to 140°F (-30°C to 60°C)
Installation In-Building or In-Vehicle Examples
Installation In-Building or In-Vehicle
The IC-SAT100M PTT radio can be installed inside a building with the antenna unit (with RF unit) extended outside for a clear view of the sky.
In a Building
Using the power over Ethernet (PoE) capability, the main unit supplies power to the antenna unit through the LAN cable. Simply connect the PoE injector/switch to extend the distance between the main unit and the antenna unit.
(A 100 m LAN cable is sold separately).
In a Building
Simply attach the antenna on the roof. The IC-SAT100M PTT radio has Bluetooth® capability to support hands-free operation, while driving. The optional AH-40 antenna provides flexible antenna installation.
Iridium PTT Coverage
Only Iridium provides 100% global communications coverage
Stay connected everywhere. Iridium is the leading commercial satellite network in the world and the only one that provides voice and data communications across every inch of the planet — including the earth's oceans, airways and polar regions.
Push-to-talk coverage is available everywhere on Earth - on land, at sea, and in the air. PTT service usage is available anywhere within the radius of the talkgroup areas you define in the Command Center app.
Iridium PTT Command Center
A powerful, intuitive dashboard for centralized control.
The true power of the Iridium Push-to-Talk solution lies within the Command Center. The intuitive and robust web-based tool offers the complete flexibility to manage talkgroups, coverage areas, and PTT devices on the fly within seconds.
Iridium Satellite PTT Service Plans
Iridium service plans for the PTT devices can be either three (3) months or twelve (12) months. Both plans offer the convenience of unlimited PTT usage and cost flexibility by size of coverage area.
What's in the Box
- IC-SAT100M speaker microphone main unit

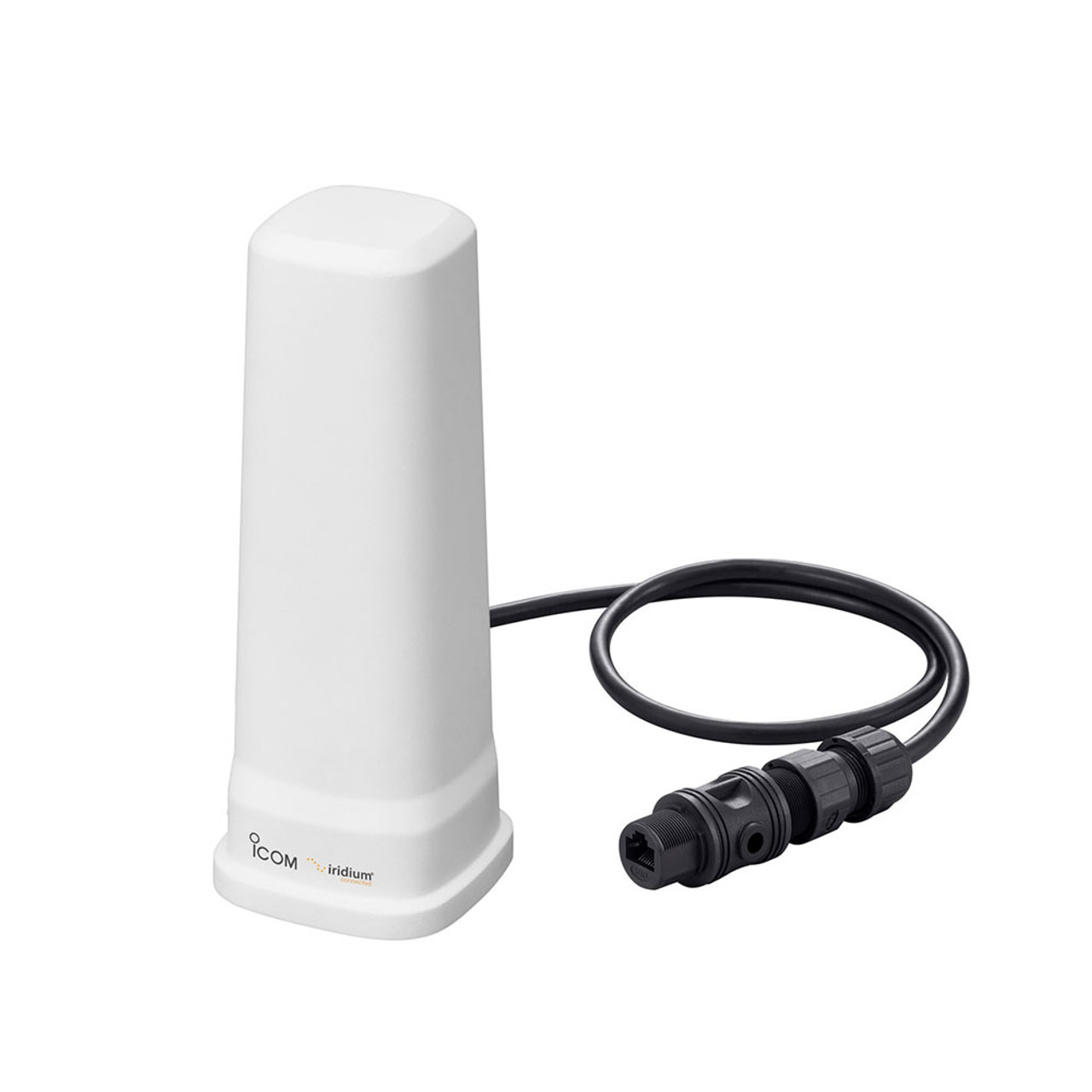

- Antenna unit with RF unit
- Multi-functional speaker-microphone
- OPC-2435 DC power cable
- OPC-2102 LAN cable 65.6 ft (20 m)
- Mobile bracket for the main unit
- Antenna angle and mounting kits
